►Sony Effio DSP
►High Density 1/3” Sony EX-view CCD(960H)
►700TV Line
►0.003Lux (F1.2@40IRE)
►D-WDR by ATR (Adaptive Tone Reprodution)
►2DNR Noise Reduction
►Motion Detection
►Privacy Mask
►OSD menu
►CAMERA ID
►True Day&Night (ICR)
►42pcs of 850nM IR LEDs
►External lens Control(Tool free)
►3-Axis One-touch locking Concealed Bracket
►External OSD Control and Video Sub-out port

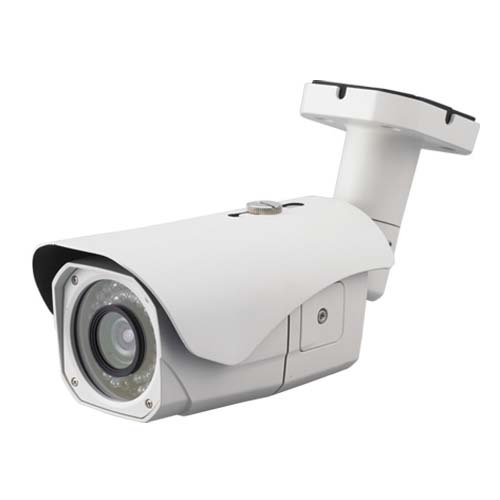

ITEM	SBC-T42E2812 SBC-T42E2812A

Image Sensor

High Density 1/3” Sony EX-view (960H)

Image Precessor

Sony Effio DSP

Effective Pixels

NTSC=976(H) x 494(V)  PAL=(V)976(H) x 582(V)

TV System

NTSC / PAL

Scan Freq.

NTSC=59.94Hz(V), 15.734Khz(H)   PAL=50Hz(V), 15.625Khz(H)

Synchronization

Internal

H. Resolution

700TVL

Sensitivity

0.003Lux (0Lux with built-in 24 infrared LEDs)

S/N Ratio

More than 52dB with AGC OFF at 50IRE

Electronic Iris

NTSC=1/60 ~ 1/100,000sec   PAL=1/50 ~ 1/100,000sec

White Balance

1,800 ~ 10,500ºK Automatic tracking

Motion Detection

24x16 BLOCK ALARM AREA

BLC, HLC

Built-In

Privacy Mask

Up to 8 programmable mask areas

D-WDR

by ATR (Adaptive Tone Reproduction)

OSD Language

ENGLISH ,JAPANESE, DEUTCH,   FRANCH RUSSIAN, PORTUGUES, ESPANOL

Auto Iris

DC drive iris control

Video Output

VBS 1Vpp +/-10%, 75ohm

Lens	2.8~12mm DC Drive Auto Iris Vari-focal Lens

Day & Night

True Day & Night (ICR)

Protection rating

IP67

Operating Temp./Hum.

-10˚C~+50˚C / 30%~80% RH

Storage Temp./Hum.

-20˚C~+60˚C / 20%~90% RH

Power

12VDC  12VDC:520mA  24VAC:380mA  Dual Power

Design and specifications are subject to change without notice.

Dimension

98.7mm(W) x 237.4mm(D) x 174.8(H)
